AL/A2 - Multigrip blind rivet countersunk head
New
02 - Multigrip blind rivets countersunk head
- Write a review
More info
02AIC - BLIND RIVET MULTIGRIP
open type countersunk head

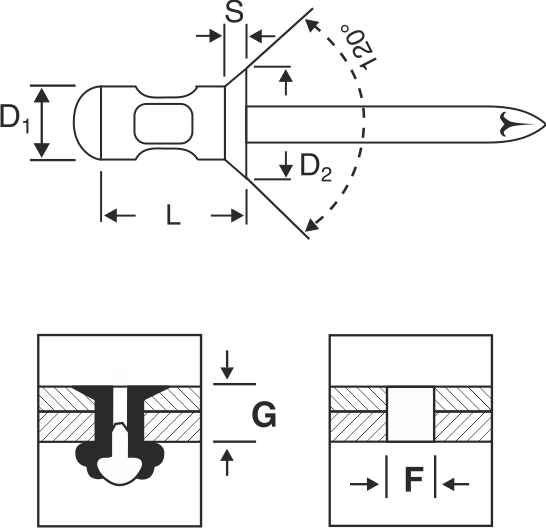

| D1 | L [+1/-0,2] | G-range | Item nr. | D2 | S | tensile | shear |
| [mm] | [mm] | [mm] | [mm] | [mm] | [N] | [N] | |
| 3,2 | 9,7 | 2,0-6,5 | 02AIC3209 | ||||
| [+0,05/-0,13] | |||||||
| hole size | 6,0 | - | 980 | 680 | |||
| F- 3,3mm [3,5 max] | [+0/-0,5] | ||||||
| 4,0 | 9,5 | 1,5-6,0 | 02AIC4009 | ||||
| [+0,05/-0,13] | 11,3 | 3,0-8,0 | 4011 | ||||
| hole size | 7,5 | - | 1,600 | 1,150 | |||
| F- 4,1 mm [4,3 max] | [+0/-0,5] | ||||||
| 4,8 | 12,1 | 2,0-7,0 | 02AIC4812 | ||||
| [+0,05/-0,13] | 16,9 | 7,0-12,0 | 4816 | 9,0 | |||
| hole size | [+0/-0,5] | - | 2,350 | 1,500 | |||
| F- 4,9mm [5,2 max] |
- AL - C Aluminium blind rivet with steel mandrel dome head
- AI - C Aluminium blind rivet with stainless steel mandrel dome head
- AA - C Aluminium blind rivet with aluminium mandrel dome head
- CS - C Copper blind rivet with steel mandrel dome head
- SS - C Steel blind rivet with steel mandrel dome head
- II - C Stainless steel blind rivet A2 with stainless steel A2 mandrel dome head
- I4 - C Stainless steel blind rivet A4 with stainless steel A4 mandrel dome head
head of the rivet type
- D dome head
- C countersunk head
- L large head
- X extra large head
materials codes
- AL AL/ST Aluminium body, steel mandrel
- AI AL/A2 Aluminium body, stainless steel mandrel
- AA AL/AL Aluminium body, aluminium mandrel
- CS CU/ST Copper body, steel mandrel
- SS ST/ST Steel body, steel mandrel
- II A2/A2 Stainless steel A2 body, stainless steel mandrel
- I4 A4/A4 Stainless steel A4 body, stainless steel mandrel
example of the rivet code
