04ALD - PEEL BLIND RIVET
peel type dome head

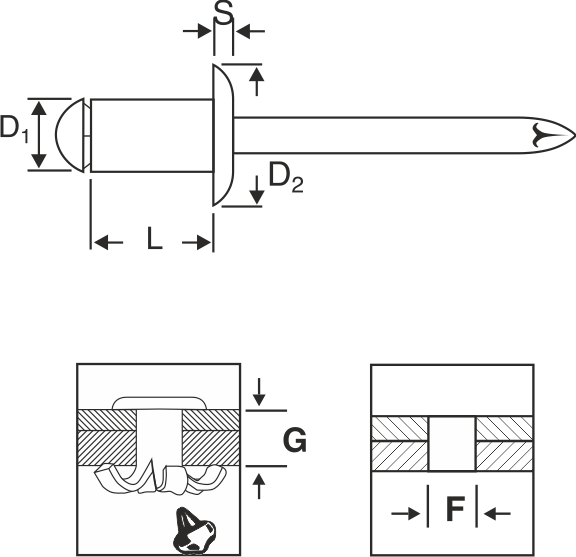

| D1 | L [+0,3/-0,2] | G-range | Item nr. | D2 | S | tensile | share |
| [mm] | [mm] | [mm] | [mm] | [mm] | [N] | [N] | |
| 3,2 | 8,0 | 0,5-1,0 | 04ALD3208 | ||||
| [ +/-0,15] | 10,0 | 1,0-3,0 | 3210 | ||||
| hole size | 12,0 | 3,0-5,0 | 3212 | 6,5 | 1,0 | 750 | 820 |
| F- [3,7 max] | 16,0 | 7,0-9,0 | 3216 | [+/-0,2] | [+/-0,1] | ||
| 18,0 | 9,0-11,0 | 3218 | |||||
| 4,0 | 10,0 | 1,5-5,0 | 04ALD4010 | ||||
| [ +/-0,15] | 12,0 | 4,0-6,5 | 4012 | ||||
| hole size | 14,0 | 6,0-9,0 | 4014 | ||||
| F- [4,5 max] | 16,0 | 8,0-11,0 | 4016 | 8,0 | 1,2 | 1,140 | 1,280 |
| 18,0 | 10,0-13,0 | 4018 | [+/-0,4] | [+/-0,2] | |||
| 20,0 | 12,0-15,0 | 4020 | |||||
| 4,8 | 10,0 | 1,5-4,0 | 04ALD4810 | ||||
| [ +/-0,15] | 12,0 | 2,0-6,0 | 4812 | ||||
| hole size | 14,0 | 4,0-8,0 | 4814 | ||||
| F- [5,3 max] | 16,0 | 6,0-10,0 | 4816 | ||||
| 18,0 | 8,0-12,0 | 4818 | |||||
| 20,0 | 10,0-14,0 | 4820 | 9,0 | 1,4 | 2,450 | 2,100 | |
| 22,0 | 12,0-16,0 | 4822 | [+/-0,4] | [+/-0,2] | |||
| 25,0 | 16,0-19,0 | 4825 | |||||
| 30,0 | 19,0-24,0 | 4830 | |||||
| 35,0 | 24,0-29,0 | 4835 | |||||
| 40,0 | 29,0-34,0 | 4840 | |||||
- AL - D Aluminium blind rivet with steel mandrel dome head
- AI - D Aluminium blind rivet with stainless steel mandrel dome head
- AA - D Aluminium blind rivet with aluminium mandrel dome head
- CS - D Copper blind rivet with steel mandrel dome head
- SS - DSteel blind rivet with steel mandrel dome head
- II - D Stainless steel blind rivet A2 with stainless steel A2 mandrel dome head
- I4 - D Stainless steel blind rivet A4 with stainless steel A4 mandrel dome head
head of the rivet type
- D dome head
- C countersunk head
- L large head
- X extra large head
materials codes
- AL AL/ST Aluminium body, steel mandrel
- AI AL/A2 Aluminium body, stainless steel mandrel
- AA AL/AL Aluminium body, aluminium mandrel
- CS CU/ST Copper body, steel mandrel
- SS ST/ST Steel body, steel mandrel
- II A2/A2 Stainless steel A2 body, stainless steel mandrel
- I4 A4/A4 Stainless steel A4 body, stainless steel mandrel
